NET24 REFLEX LINE T UP&DOWN
- - - - - - - - - - - -

Specifications

  • Aluminium extruded body with electrostatic powder coated
  • PC lens with high efficiency
  • High efficient aluminium louver reflector for glare control (UGR<17)
  • LED (L80/B10) + DRIVER life time more than 100.000 Hours
  • Mid Power LED light source.
  • Input Voltage: 220-240V, 50-60 Hz
  • Operating Temp. (Ta): -200C / +350C
  • CASAMBI, Easy-Air Sensor, DALI Sensor ... as an option





Application

  • Offices
  • Educational Facilities
  • Corridors
  • Hospitals
  • Sports Center

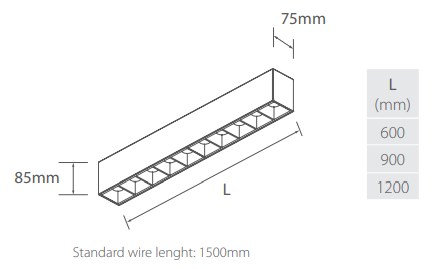

Watt Lumen lm/W CRI Kelvin (K) Dimension Code
9(down)
4(up)		 1395(down)
440(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:600mm 3711280201-0501003051
18(down)
7(up)		 2790(down)
770(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:600mm 3711280201-0502003051
18(down)
7(up)		 2790(down)
770(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:900mm 3711280202-0502003051
27(down)
11(up)		 4185(down)
1210(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:900mm 3711280202-0503003051
34(down)
14(up)		 5270(down)
1540(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:1200mm 3711280203-0504003051
42(down)
17(up)		 6510(down)
1870(up)		 155+(down)
110+(up)		 80+ 2700~6500 L:1200mm 3711280203-0505003051

The lumen values are only for reference. There may be changes in the data according to LED chip and driver.

-
-

WHITE

GREY

BLACK

All RAL colours available as an option.
