Catalog 2023

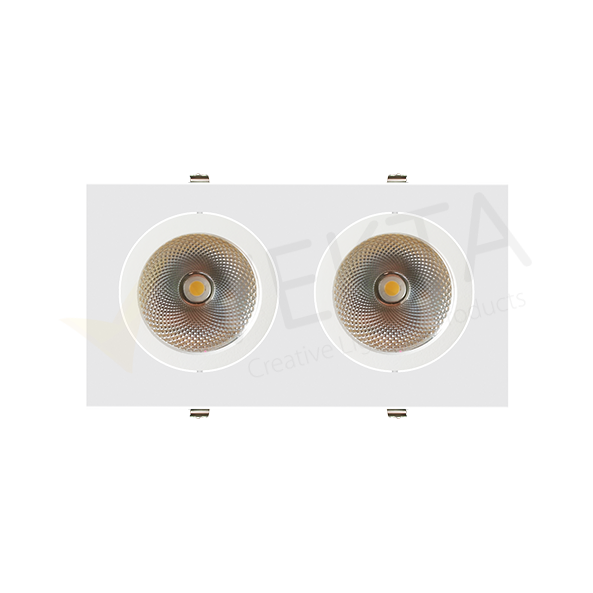

FRAME 2 MERCURY H4
- - - - - - - - - - - - - - -

Specifications

  • Electrostatic powder coated die cast aluminium
  • Clear PMMA cover. Tempered glass cover option
  • COB LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • %99,9 pure aluminium reflector
  • Input Voltage: 220-240V, 50-60 Hz
  • Operating Temperature: -200C/+350C

Application

  • Offices
  • Educational Facilities
  • Retails
  • Hospital and wellness
Watt Lumen lm/W CRI Kelvin (K) Dimension Code

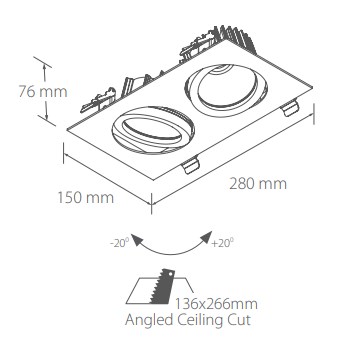

36 3708 103+ 80+ 2700~6500 150x280mm H:76mm 1081021801-3301003051
52 5668 109+ 80+ 2700~6500 150x280mm H:76mm 1081021801-3302003051
64 6208 97+ 80+ 2700~6500 150x280mm H:76mm 1081021801-3303003051

The lumen values are only for reference. There may be changes in the data according to LED chip and driver.

-
-

GREY

WHITE

BLACK

All RAL colours available as an option.
