Catalog 2023
ROUND 120 WM BOLLARD 1
- - - - - - -

Specifications

  • Aluminium body with electrostatic powder coated
  • Special design IP65 cover
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • High Power LED light source
  • Input Voltage: 220-240V, 50-60 Hz
  • Operating Temperature (Ta): -200C / +450C

Application

  • Parks and Gardens
  • Streets
  • Sidewalks
Watt Lumen lm/W CRI Kelvin (K) Dimension Code
10 1320 132+ 70+ 2700~6500 W:120mm H:500mm 5934270301-0701003054
14 1792 128+ 70+ 2700~6500 W:120mm H:500mm 5934270301-0702003054
20 2300 115+ 70+ 2700~6500 W:120mm H:500mm 5934270301-0703003054
30 3300 110+ 70+ 2700~6500 W:120mm H:500mm 5934270301-0704003054

The lumen values are only for reference. There may be changes in the data.

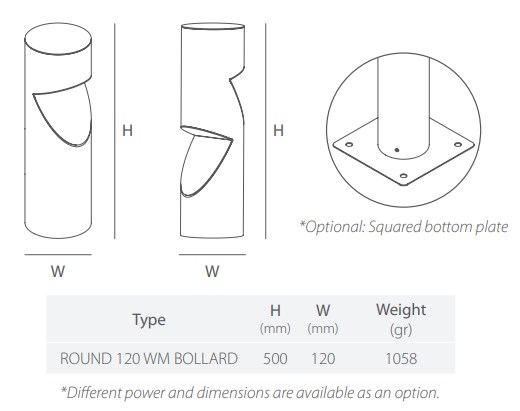

wm120bollard-tech
wm120bollard-photometry

Light Grey

Glitter Dark Grey

All RAL colours available as an option.
