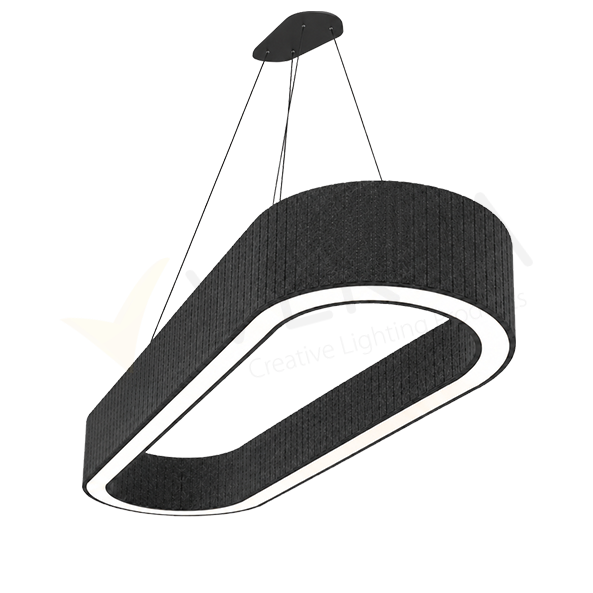

ACOUSTIC OBLONG RING T (DOWN)
- - - - - - - - - - - - - - - -

Specifications

  • Decorative acoustic luminaire with 1800 g PET felt body made from recycled plastic bottle fibers
  • Soft acoustic felt surface on both exterior and interior sides
  • Electrostatic powder coated aluminium body with fabricated steel back cover
  • PMMA opal diffuser; prismatic diffuser available as an option
  • Mid-power LED light source
  • LED L80/B10 and driver lifetime over 100,000 hours
  • Input voltage: 220–240V, 50–60 Hz
  • Operating temperature Ta: -20°C / +35°C
  • CASAMBI, EasyAir Sensor, DALI Sensor and other control options        available upon request

Application

  • Offices
  • Educational Facilities
  • Shops and stores
  • Architectural Applications
Watt Lumen lm/W CRI Kelvin (K) Dimension Code

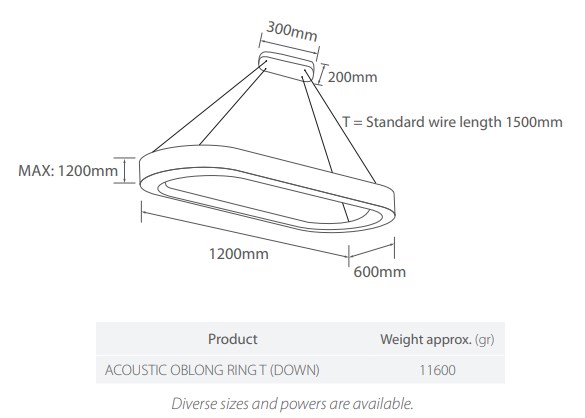

90 9360 100+ 80+ 2700 ~ 6500 1200x600mm 6942060201-0501003051

The lumen values are only for reference. There may be changes in the data according to LED chip and driver.

-
-
All RAL colours available as an option.
